Destacar:
Volume do cilindro: |
90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr |
Capacidade de enchimento de gás: |
112,5 kg, 150kg, 187,5kg, 225kg, 306,25kg |
Pressão de trabalho máximo: |
8MPa, 5.3MPa |
Área protegida máxima: |
Zona única: 800m2 |
Volume protegido máximo: |
Zona única: 3600m3 |
Tempo de pulverização: |
≤10s |
Densidade de preenchimento do agente: |
≤1250kg/m3 |
Poder: |
DC24V/1A |
Pressão de adicionar o cilindro da pressão: |
13.5MPa |
Pressão do dispositivo de acionamento: |
6.0MPa (20℃) |
Condições para reservar o quarto do contêiner: |
Temperatura: 0 ~ 50 ℃ |

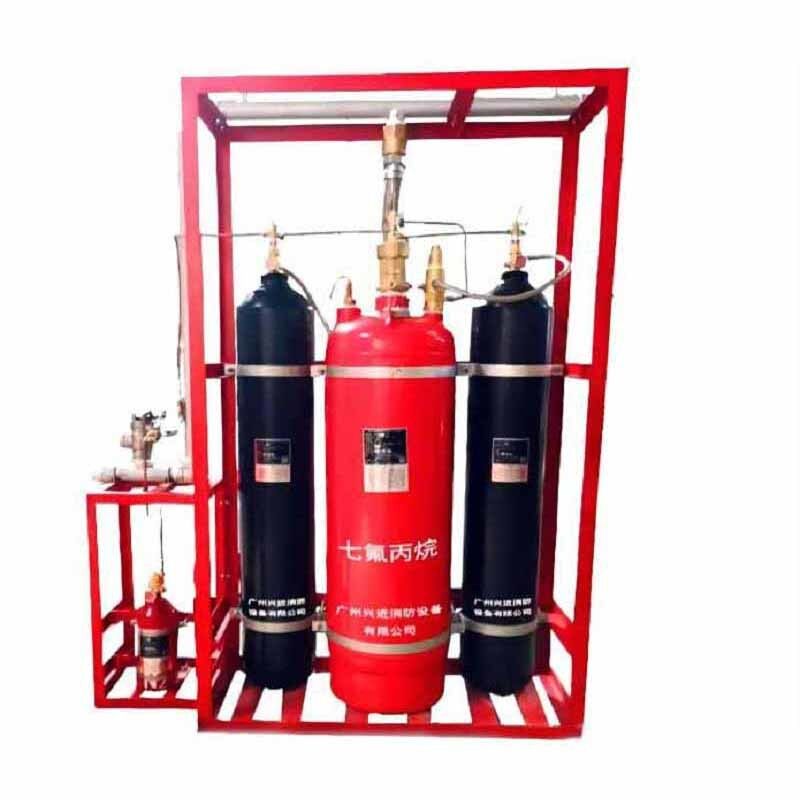

Piston Flow Type of FM200 Fire Suppression System
Description:
Fm200(hfc-227ea) is a kind of clean gas extinguishing agent with chemical extinguishing and physical extinguishing.It is colorless, tasteless, low toxicity, non-conductive, does not pollute the protected object.
The piston flow type heptafluoropropane fire suppression system, which is produced by our company, absorb the advanced technology of gas fire extinguishing research at home and abroad. It is high strength safety factor, strong work reliability, convenient operating and maintenance. At the same time, the system has automatic and manual driving mode. It relies on external driving force to push the agent farther in the effective fire-fighting time.
Compositions:
This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
 |
|
Multiple cylinders for one zone
|
Multiple cylinders for multiple zones
|
Applications:
It is widely used in computer rooms, power distribution rooms, telecommunications centers, libraries, archives, treasure chest and underground engineering for the class A, B, C fire and electrical equipment fire. But it is not applicable to potassium, sodium, magnesium, uranium and active metal chloride and digestive fiber fire places.
Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:Heavy-duty cardboard box,Bubble wrap,Protective foam inserts,Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:
All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.Customers will receive a tracking number via email once their order has been shipped.
Special Handling Instructions:
If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.
